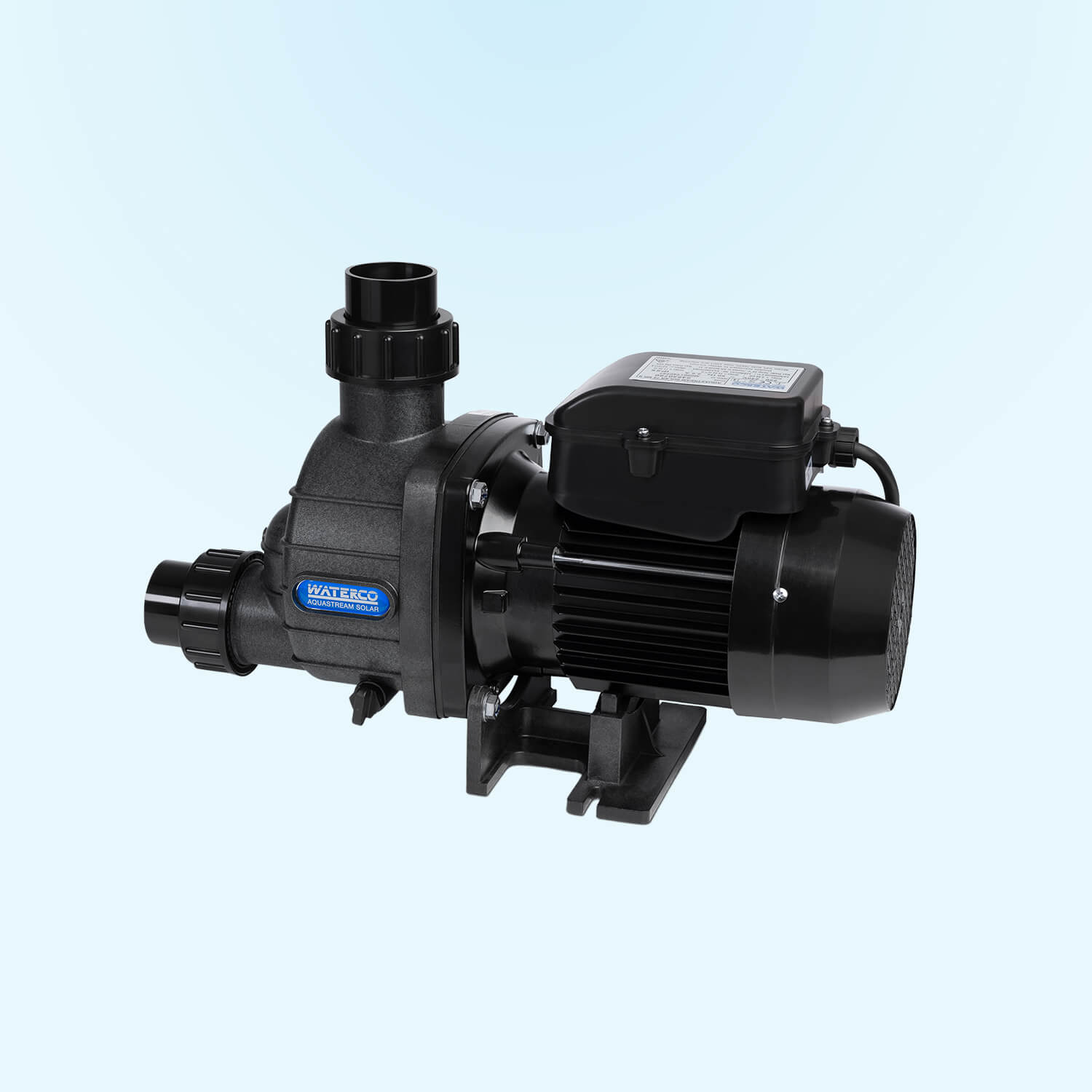

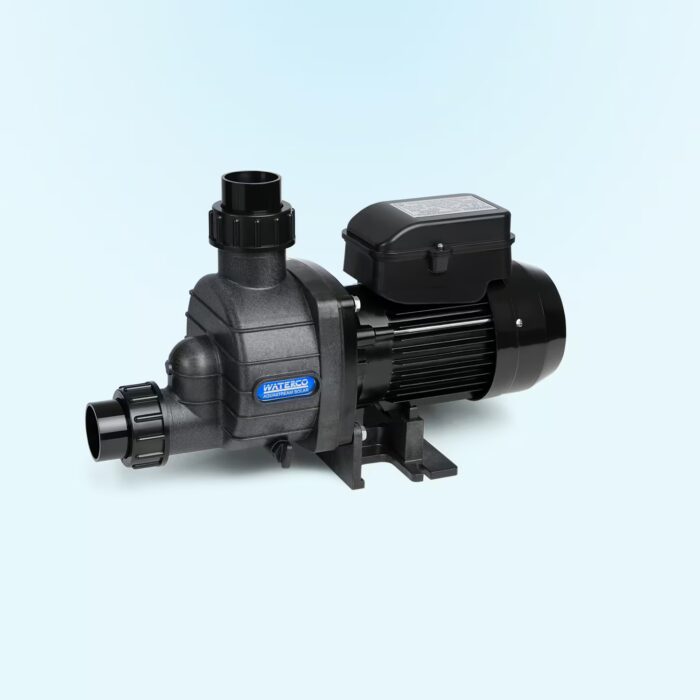

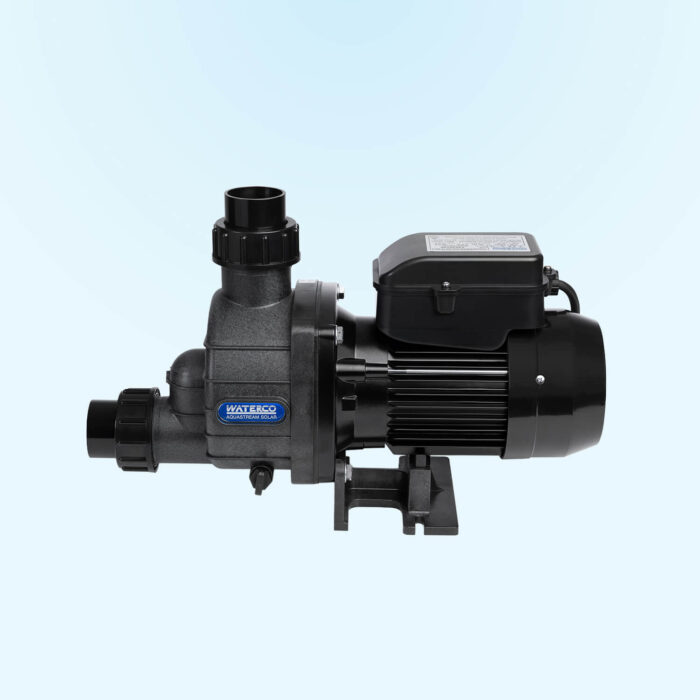

Aquastream Solar

Our Aquastream Solar pump is simple to operate and easy to maintain. Well-known for its quietness and reliability, they incorporate essential features required to make them compatible with solar pool heating systems.

Search for the store name to inquire about availability.

Product Details

  • Hydraulically efficient impeller/diffuser design
  • Glass filled thermoplastic pump body
  • Mechanical seal – high grade carbon/graphite with 316 stainless steel
  • Secondary seal – protects the pump motor end shield from any water contact, by capturing any leaks through a worn out mechanical seal and draining it out of the pump
  • Solar check valve prevents water from flowing back to the pump
  • 40mm male BSP threaded on body, barrel unions supplied for 40mm UPVC pipe inlet/outlet
  • Drain pipe
  • 7 star energy rating



Heavy-duty motor:

  • IP44 for Australian/NZ market and IP55for overseas market
  • Motor shaft 303-grade stainless steel
  • Fan cooled
  • Thermal overload protection
  • Insect and vermin resistant

Product Specifications

Model Nominal HP KW Amps Phase Volts Cycle RPM
Aquastream Solar 50 0.5 0.58 2.5 1 220 - 240 50 2860
Aquastream Solar 75 0.75 0.65 3.0 1 220 50 2860
Aquastream Solar 100 1.00 0.76 3.33 1 220 50 2860
Aquastream Solar 150 1.50 1.15 5.0 1 220 50 2860
