Raypak

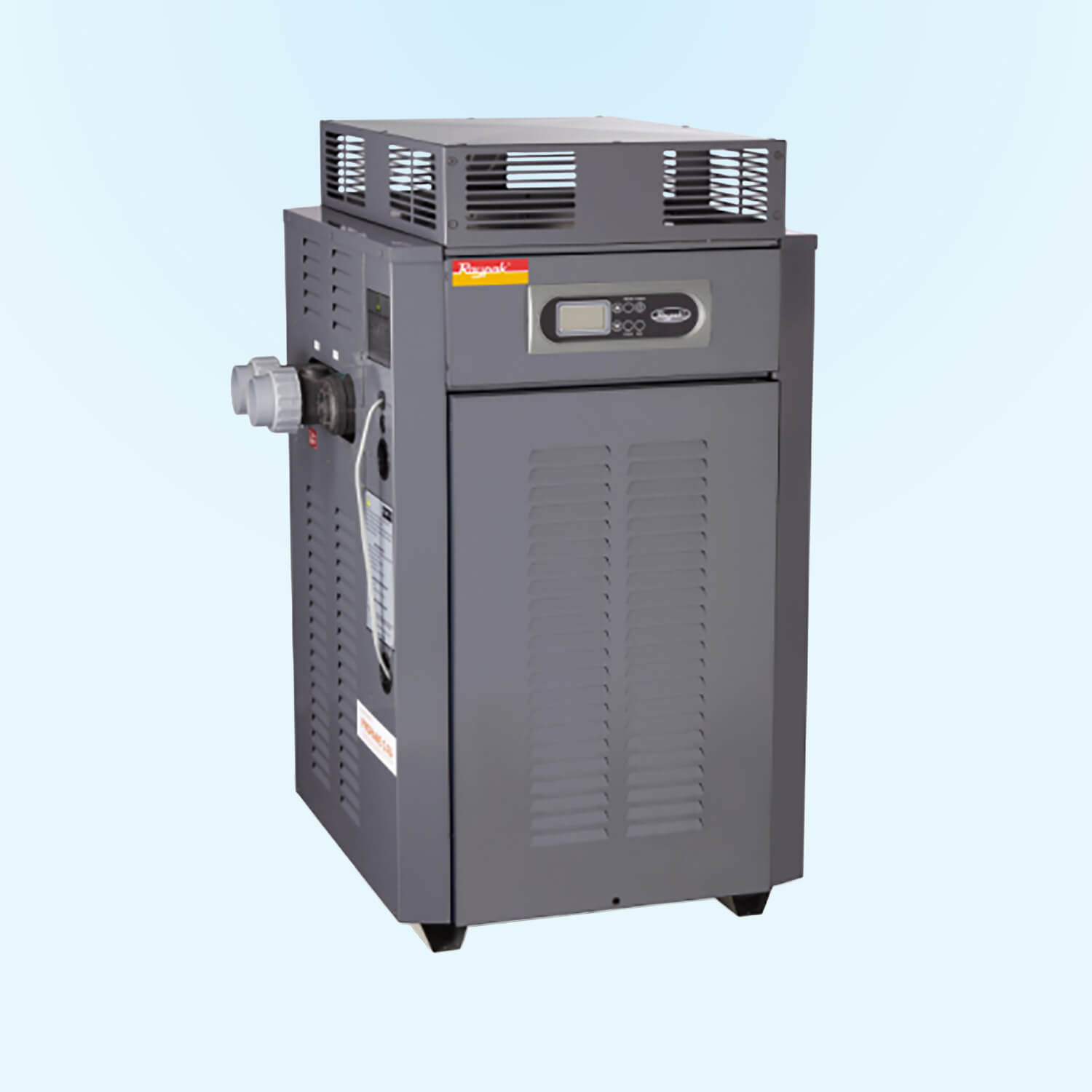

Our Raypak gas pool and spa heater is manufactured in Australia and built to withstand various weather conditions. With the atmospheric design ensuring quietness of operation, it is the ideal solution for environments requiring efficiency, convenience and versatility.
Find a Swimart
Product Details
Pool Heater Models 200, 280, 350 & 430:
- ProTek Shield module protects the cupro-nickel heat exchanger (residential models only)
- Reliable & trustworthy performance
- Cupro-nickel heat exchanger for greater protection
- Powder coated heavy gauge metal casing
- Connectivity with automatic pool control systems
- Optional in-house remote control
- Suitable for either indoor or outdoor installations
- Service code diagnostics
- Child-lock function

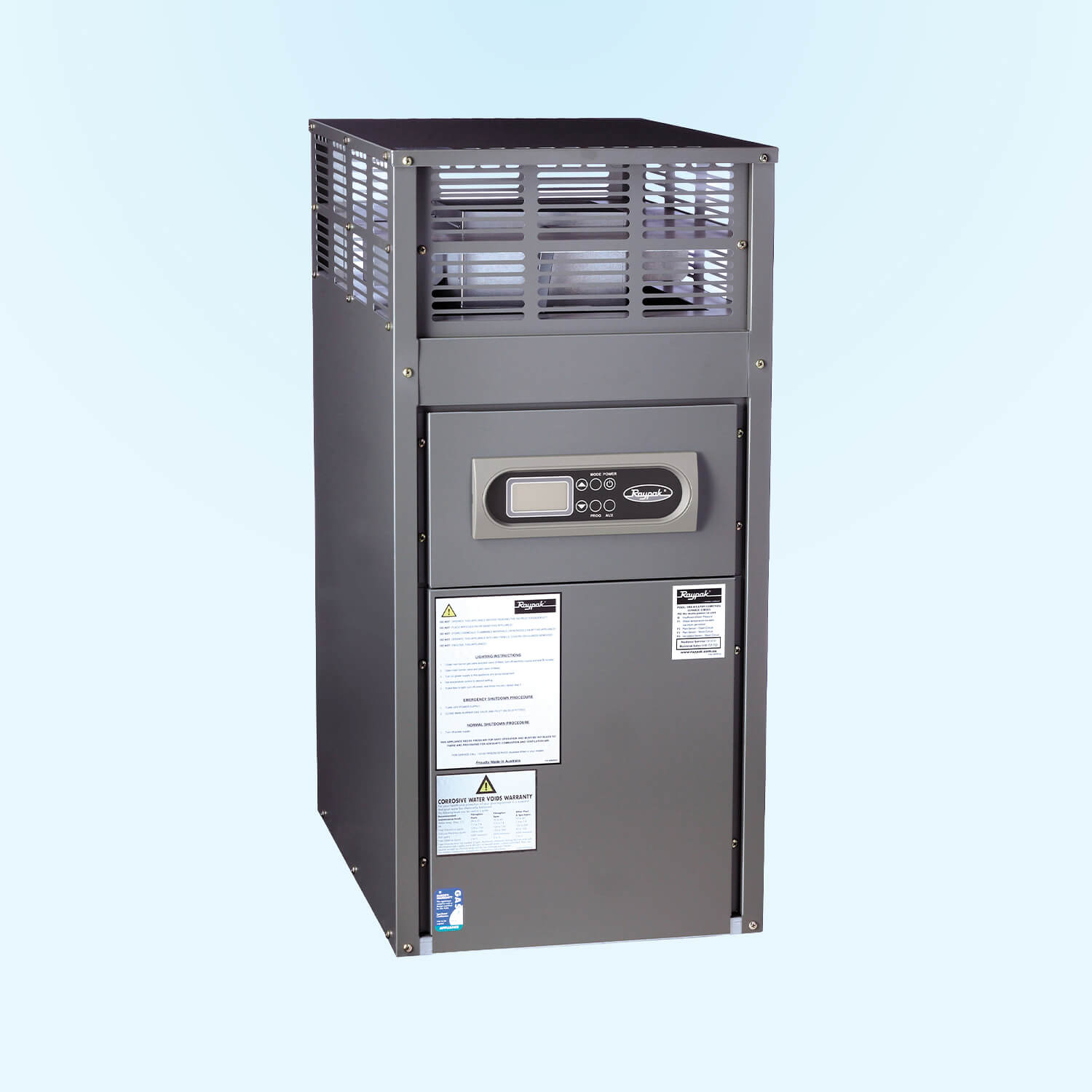

Spa Heater Models 131:
- Digital thermostat display
- Connectivity with automatic spa control systems
- Optional in-house remote control
- Service code diagnostics
- Child-lock function
- Spartan 131 suitable for outdoor installations only
Product Specifications
Premium and Residential Gas Heaters
| Model | Nominal Rating | Approximate Dimensions | Connections | Indoor Installations | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Natural Gas | Propane Gas | All Models | Gas | Water | ||||||||
| Input MJ/h | Output kW | Input MJ/h | Output kW | Height mm | Width mm | Depth mm | Weight kgs | mm | mm | Flue Diameter mm | Height Overall mm | |
| 131 Spartan Residential | 120 | 24 | 117 | 24 | 860 | 440 | 650 | 35 | 20 | 40 | NA | NA |
| 200 Residential | 196 | 44 | 185 | 41 | 1055 | 530 | 653 | 70 | 20 | 50 | 175 | 1550 |
| 280 Premium & Residential | 278 | 62 | 261 | 58 | 1055 | 640 | 653 | 75 | 20 | 50 | 200 | 1550 |
| 350 Residential | 343 | 76 | 323 | 72 | 1055 | 730 | 653 | 85 | 20 | 50 | 225 | 1605 |

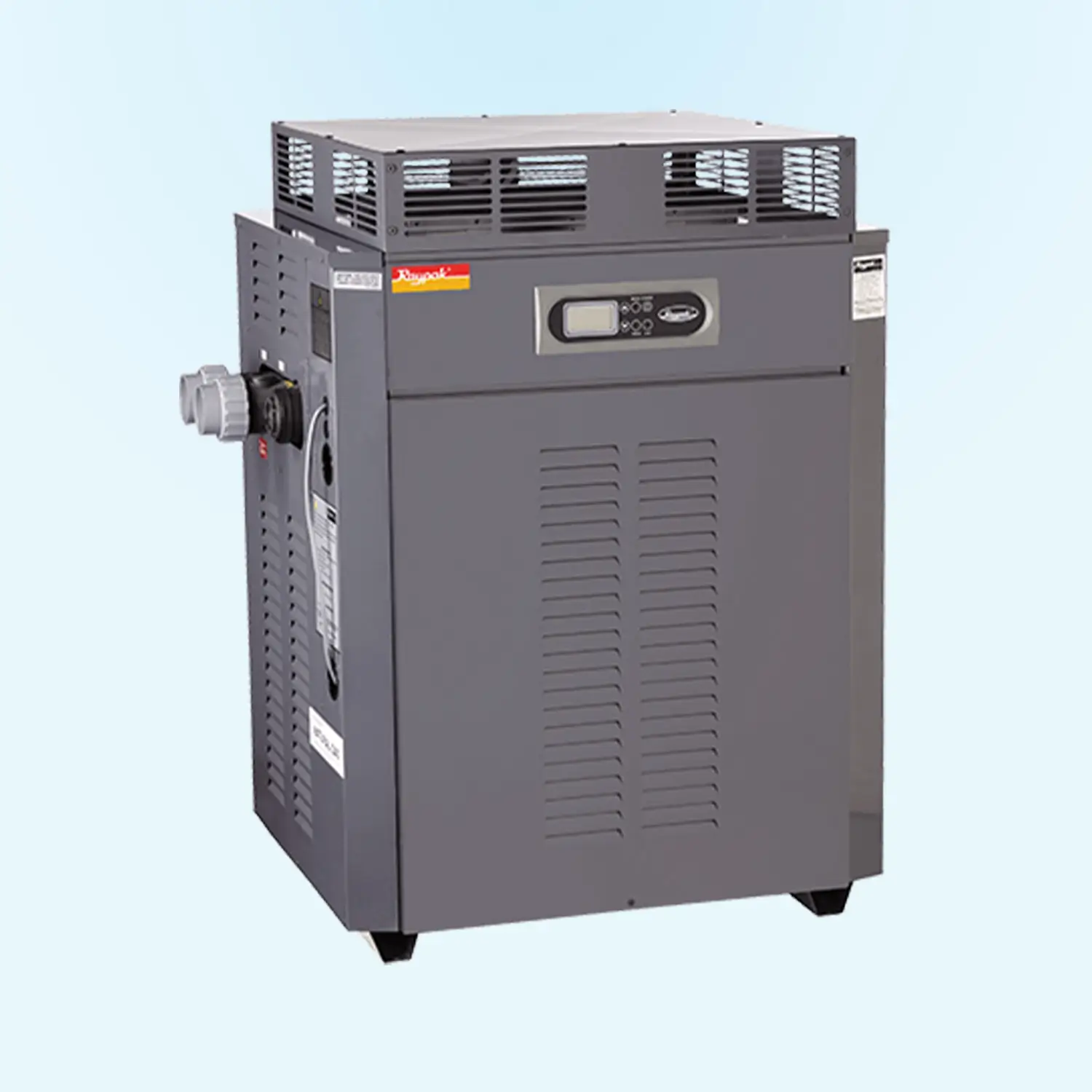

| 430 Premium & Residential | 420 | 94 | 369 | 88 | 1055 | 870 | 653 | 90 | 20 | 50 | 250 | 1605 |
Temperature Rise
| Model | Temperature Rise per Hour (Spa) | Temperature Rise over 24 hours (Pool) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Spa Volume (Litres) | Pool Surface Area (m2) | ||||||||
| 2000 | 3000 | 4000 | 5000 | 20 | 40 | 60 | 80 | 100 | |
| 131 Spartan Residential | 10° | 6° | 5° | 4° | |||||
| 200 Residential | 17° | 12° | 9° | 7° | 21° | 15° | 10° | 8° | 6° |
| 280 Premium & Residential | 25° | 17° | 12° | 10° | 26° | 20° | 14° | 10° | 8° |
| 350 Residential | 32° | 21° | 16° | 12° | 32° | 25° | 18° | 13° | 10° |
| 430 Premium & Residential | 38° | 26° | 19° | 15° | 34° | 27° | 20° | 15° | 12° |
