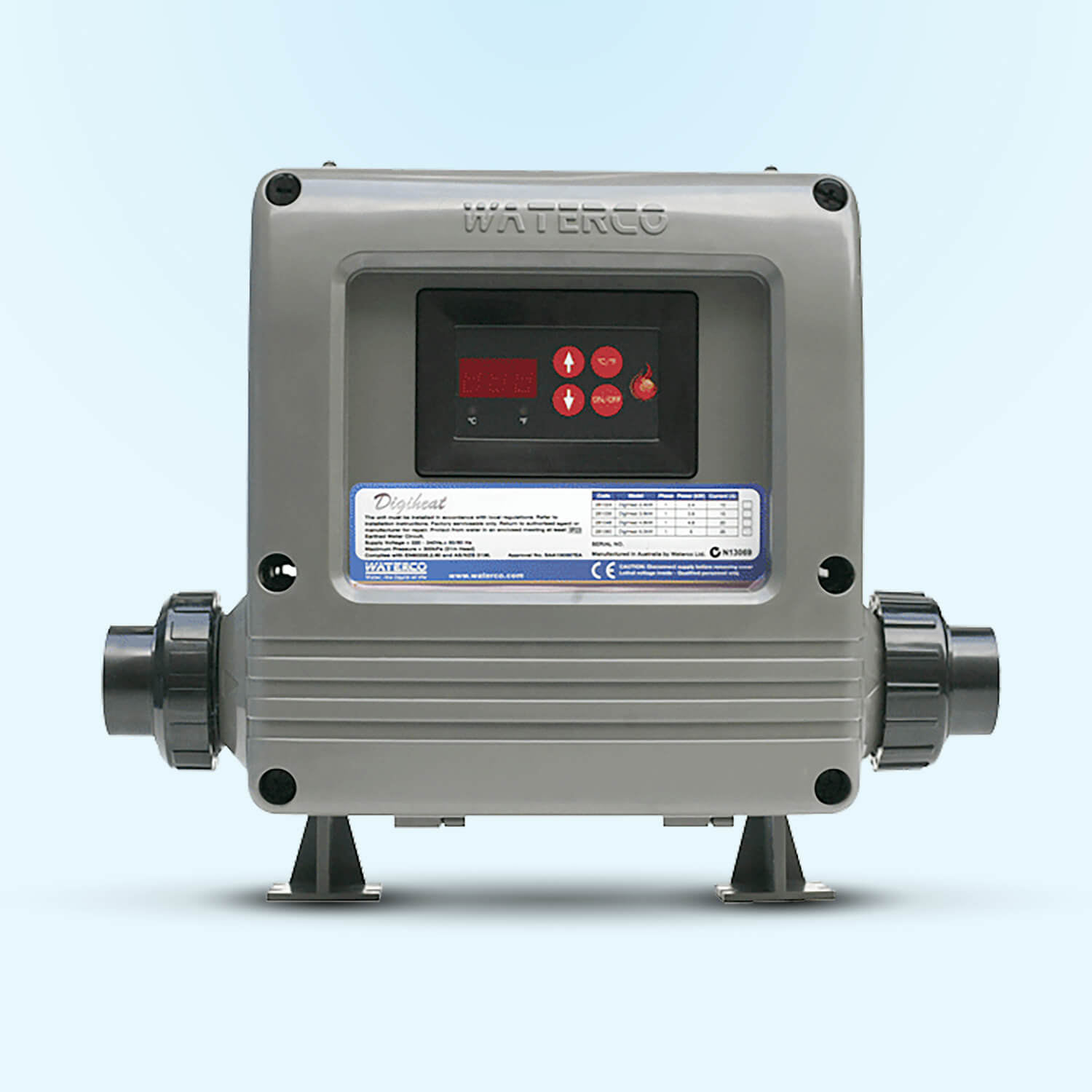

Digiheat Titanium
Our Digiheat Titanium electric spa heaters are the perfect way to keep your spa heated and ready for use. Fitted with titanium coiled heating elements that provide corrosion resistance, you can be sure that your spa will stay warm and inviting all season long.
Search for the store name to inquire about availability.
Product Details
- Available in single phase sizes 2.4, 3.6, 4.8, 6.0 kW and three phase sizes 18.0 & 24 kW
- Powerful heat transfer through the coiled element, maximising water contact
- Titanium coiled heating element impervious to ozone, iodine, baquacil, salt and chlorinated water
- Smart controls for temperature management and self diagnosis
- Inbuilt safety devices for water flow and over temperature cutout
- Weatherproof cabinet for outdoor installation
Product Specifications
| Product Code | DigiHeat Model | Volts | Current Draw | Minimum Circuit Size | Connection Size | Minimum Flow Rate |
|---|---|---|---|---|---|---|
| 2810240 | 2.4 kW | 240 Volts (single phase) | 10 A | 15 A | 40 mm | 100 litres / minute |
| 2810360 | 3.6 kW | 240 Volts (single phase) | 15 A | 20 A | 40mm | 100 litres / minute |
| 2810480 | 4.8 kW | 240 Volts (single phase) | 20 A | 25 A | 40mm | 100 litres / minute |
| 2810600 | 6.0 kW | 240 Volts (single phase) | 25 A | 30 A | 40mm | 100 litres / minute |
| 2811830 | 18.0 kW | 415 Volts (three phase) | 25 A / ph | 30 A | 50mm | 250 litres / minute |
| 2812430 | 24.0 kW | 415 Volts (three phase) | 35 A / ph | 40 A | 50mm | 250 litres / minute |
| Model kW | Time required to heat 1000 litres by 1 deg C in minutes: | Time required to heat 1000 litres by 5 deg C in minutes: |
|---|---|---|
| 2.4kW | 31 | 155 |
| 3.6kW | 22 | 103 |
| 4.8kW | 15 | 77 |
| 6kW | 9 | 46 |
| 18kW | 4 | 20 |
| 24kW | 3 | 15 |
